Brand Name : Intuiit
Model Number : CT-002P
Certification : CE&RoHS
Place of Origin : China
MOQ : negotiable
Payment Terms : T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery)
Supply Ability : 10000Pcs/month
Delivery Time : 25-35days for mass order
Packaging Details : Inner box+ Master carton

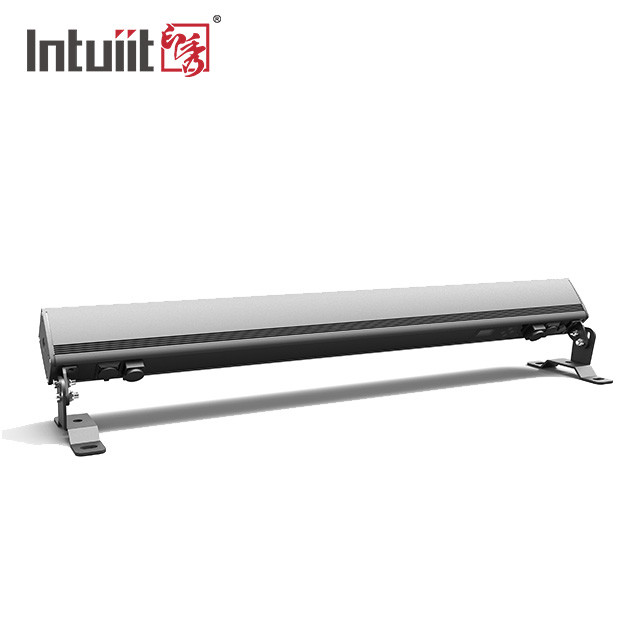

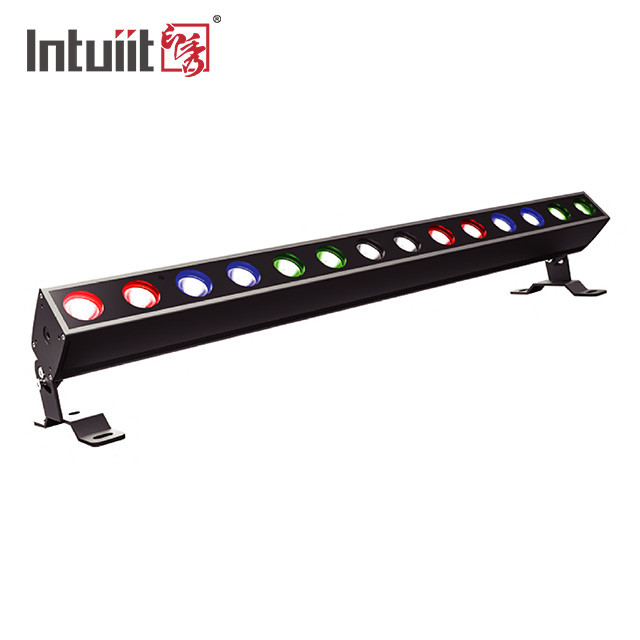

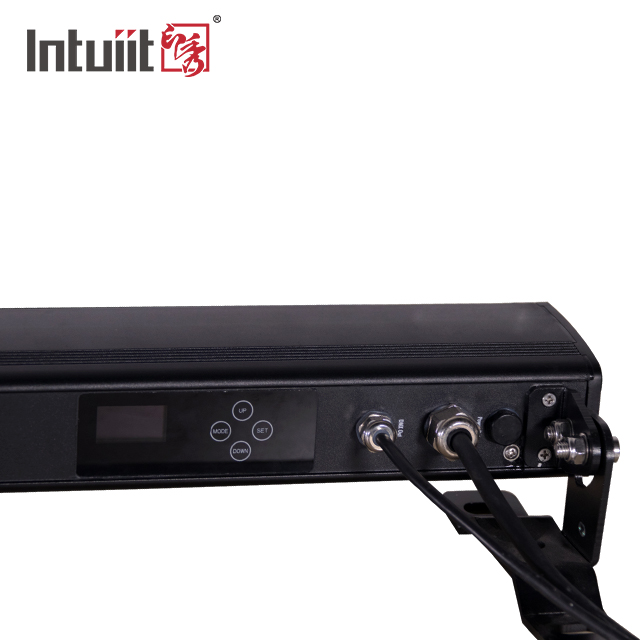

Product Name : Outdoor Wall Washer Pixel Control
Housing Color : Black
Power : 140W
Input voltage : AC100-240V, 60Hz/50Hz
IP Grade : IP65
Warranty : 1 Years
CCT : 3000K
Beam Angle : 20°, 20*40°
Channel : 4/6/8/56CH
Light Color : RGBW
Material : Aluminum Alloy
Size : 978*141*179mm
Voltage : AC110-240V
Weight : 6.2kg
Technical Data
Item No. | CT-002P |
Light Source | 14Pcs*10W RGBW 4-in-1 LED |
Max. Power | 85W |
Work voltage | AC100-240V,50-60Hz |
Beam angle | 20Degree, 20*40D |
Luminous flux | 1087lm |
Control Protocal | DMX512, RDM |
DMX Channels | 4,6,8,56CH |
IP Grade | IP65 |
Certificate | CE&RoHS |
Product's dimension | 978*141*179MM |
Net Weight | 6.2kg |
Light Distribution Data
Product's Dimension
Installation Diagram
![]() |

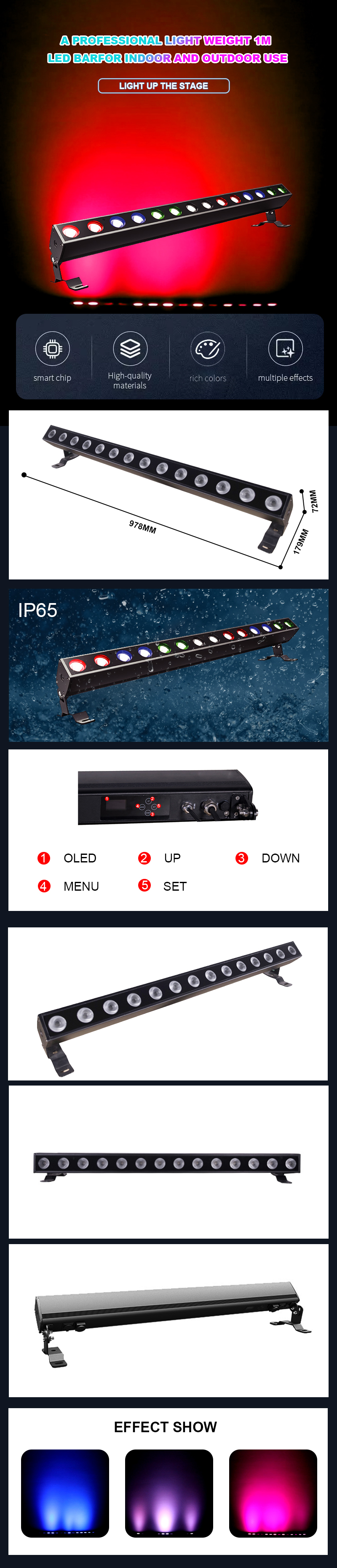

LED Facade Outdoor RGB DMX512 14X10W Linear LED Wall Washer Light LED Wall Washer For Project Images |
